General Information Car Directory
Member: Boosted Rotor
Vehicle: 1988 Mazda RX7 Series 4/5 ( More )
Location: Aust
Last Updated: 19th December, 2004
Click For Members Details

Boosted Rotor's Comments:

This car is a rare top of the range Series 4/5 jap spec RX-7 called Savanna,There is only hand full in the country.

Modification Listing
Brakes:

Factory 4 spot clampers up front, Vented rear disc's (The same size as the front), Green stuff pads, That I have NEVER got to fade.

Drivetrain:

Series 5 G/Box factory LSD.

ECU/Chip:

Microtech MTx-12

Engine Work:

Now i have a new 1000hp+ Garrett "T" Series TA51,Apexi 52mm wastegate, Add that to a new Rotormaster ported/Dowled block, My car can have the abilty to run into the very high 10-low 11 sec 1/4 mile, has run 300kw at the wheels on only 18 psi of boost

Exterior:

"Mazda Speed" Rear wing (Standard on Savanna spec)

Intake/Exhaust:

4 inch intake with pod filter, 4 inch off the back of the turbo, mandrel bent exhaust then split into twin 3" at the diff, to the back with "Droopy style tips"

Interior:

After market computer hand (Act's as another dash) set back lit screen flush fit in the double din. Autometer 2 5/8" Mechanical Boost guage & A/F meter in A piller

Rolling Stock:

Stock rim's (For slick fitment) 17" ASA LS2 235/45/17 for the street.

Stereo System:

N/A

Suspension:

Racing (1.5" lower)beat springs, Cusco strut brace.

Turbo/Intercooler:

Garrett "T" Series 1000+hp rated TA51 Turbo,Apexi 52mm wastegate, Garrett Bar & Plate intercooler (800x290x80mm) with Boost water/metho spray,BOV,2x880cc primary/2x1700cc(Staged) 2ndary injectors, Malpasi R.R Fuel regulator. The list just goes on....

Performance Statistics Top Rankings
Power Output: 420 wheel hp
Torque: 753 Nm
0 - 100km/hr: 4.2
Quarter Mile: 13.3

Performance Comments:

My car has taken out 1st in classd & outright winner for the Townsville/NQ Dyno comp & the Wild On Wheels (WOW) Dyno comp of 400hp at the back wheels (aprox 650hp at engine)

Photo Album Members Gallery

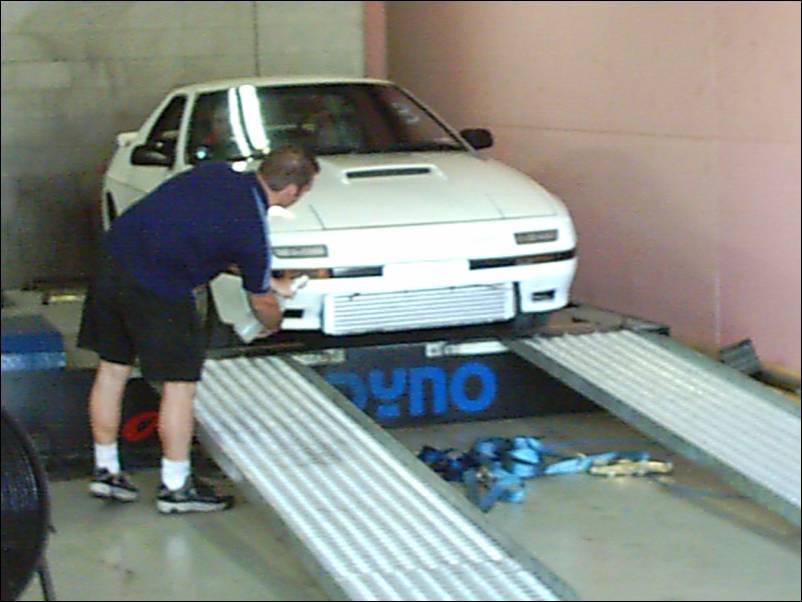

My RX-7 on Crawfords AWD Dyno

Avatar


New engine set up
Readers Comments
Posted by: mx68u on August 8, 2003 [ Car Profile ]

wow high 10's to low 11's is awesome man!! you've done really well with the beast, how about some more pics icon4.gif First in both HP and Quarter mile for your engine class man, well done.. too bad we are lacking rotors on the site ehehe icon4.gif


Posted by: Guest_Guest_Boosted Rotor on August 11, 2003

Thanks mate, Way more power to come with the new engine/turbo, I'l keep you posted.


Posted by: ROYALBLUE on August 15, 2003 [ Car Profile ]

ultra nice car, lets hope that the engine and box will hold together with the TA45.


Posted by: Boosted Rotor on August 15, 2003 [ Car Profile ]



Posted by: Boosted Rotor on August 15, 2003 [ Car Profile ]

Yeah the engine will be fine, I'll be running the bigger 3mm seals & the block will be fully doweled ect...ect..., Can handle upto 30+ pounds of boost/N2o & Dyson havent twisted the plates or cracked a seal ect....I'll only be running 20 psi of boost with NO N2O so it'll be strong as. & the G/Box has been replaced with a series 5 box & they can run 10 sec 1/4's with them. I just had the compressor cover polised on the turbo!!! It looks very nice. biggrin.gif
Thanks for all the good feed back guy's.

PS I'll see if i can get some more pics put up soon. biggrin.gif


Posted by: Guest_Guest on September 2, 2003

You'll have to bring it out then and race some of the GTR's then if your talking 10-11s.
Yes we are in Townsville.


Posted by: Guest_Guest on September 2, 2003

You'll have to bring it out then and race some of the GTR's then if your talking 10-11s.


Posted by: Guest_Enter your name on September 8, 2003

guest: U sponsor the fuel?


Posted by: fallguy on January 27, 2004 [ Car Profile ]

I'd be interested to see your dynograph. Would be neat to see how well that turbo spools up.


Posted by: rotorsrule on February 23, 2005 [ Car Profile ]

i like ur car man, but u said u have the NQ champion for WOW (wild on wheels) well when they come to mackay in 2004 we had an SS crewman make like 450 hp at the wheels and some old car with a 454 make 409hp at the rear wheels, just thought id let u know, ohhh and a little warning the crewman is gonna kick ass this year, it will make over 520 hp at the bags 4 sure ( plz dont let this happen rotories are the best)


Posted by: H4Inf on March 20, 2005 [ Car Profile ]

Very nice :-)
